HOWO NX 6×4 Sprinkler trucK

HOWO NX 6×4 Mixer Truck adopts SINOTRUK engineering special heavy-duty chassis with thick and solid frame and strong anti-torsion ability, adapting to muddy, bumpy and steep construction site conditions.
Contact Us

◉ Product Introduction

HOWO NX 6×4 Water Sprinkler Truck adopts SINOTRUK reinforced heavy-duty chassis with widened and thickened frame, stronger load capacity and better anti-torsion performance, matching large-volume tank for longer endurance and higher efficiency, suitable for municipal main lines, industrial parks, construction sites and emergency water supply.

The drive axle adopts high-load double rear axle design with high strength, good heat dissipation and stable running. The engine is large-displacement and high-torque type with sufficient power reserve, strong climbing ability and low fuel consumption.

The vehicle has balanced performance, wide operation range and high attendance rate, bringing freshness and cleanliness to cities with SINOTRUK quality.


Configuration sheet


Model:ZZ1257V464JB1/ZZ1257V464JB1R

CHASSIS SPECS

Drive style

Left/Right hand drive

Engine:

WD615.47, 371HP, with EURO 2 engine emission, 9.726L, 6 cylinders In-line

Transmission:

HW19710+HW70flange PTO;(10 forward 2 reverse)

Cabin:

Howo H77L Cab, with A/C

Color:

White

Wheelbase:

4300/4600mm

Tire:

11.00R20/12.00R20/315/80R22.5 tyres(10+1)

Front axle:

9.5T(drum)

Rear axle:

16T(drum)

Capacity of oil tank:

400L

Others

Power steer,Exhaust brake and spring brake

CARRIAGE BODY SPECS

Tank volume:

15-20 cubic meters

Tank thickness:

5mm

End cap thickness:

5mm

Baffle thickness:

3mm

Water pump:

Hangzhou Weilong water pump

Others:

equipped with front spray, rear spray, and high-pressure water gun

Package

Wax

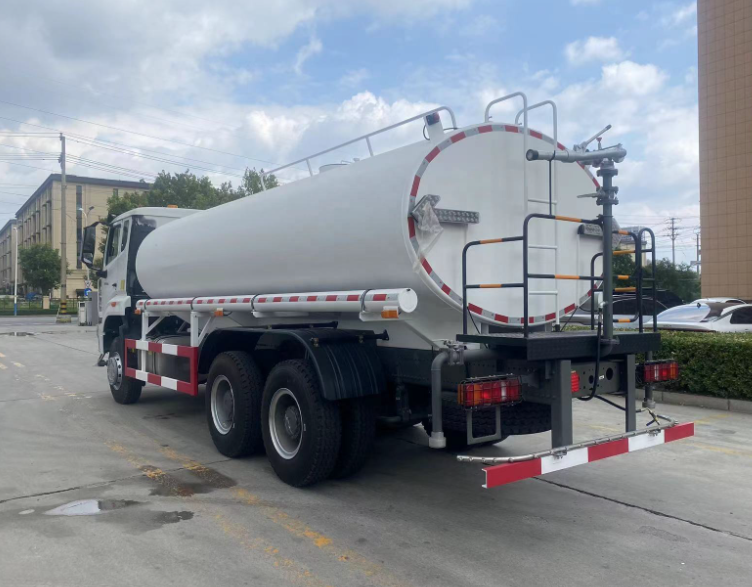

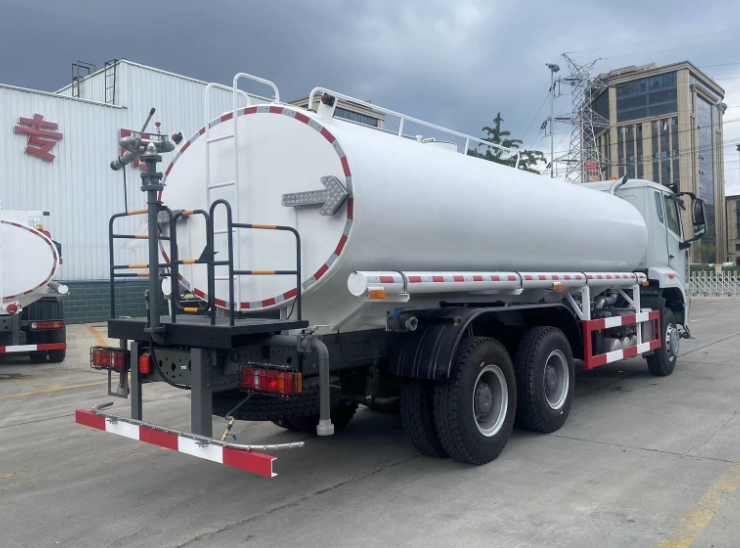

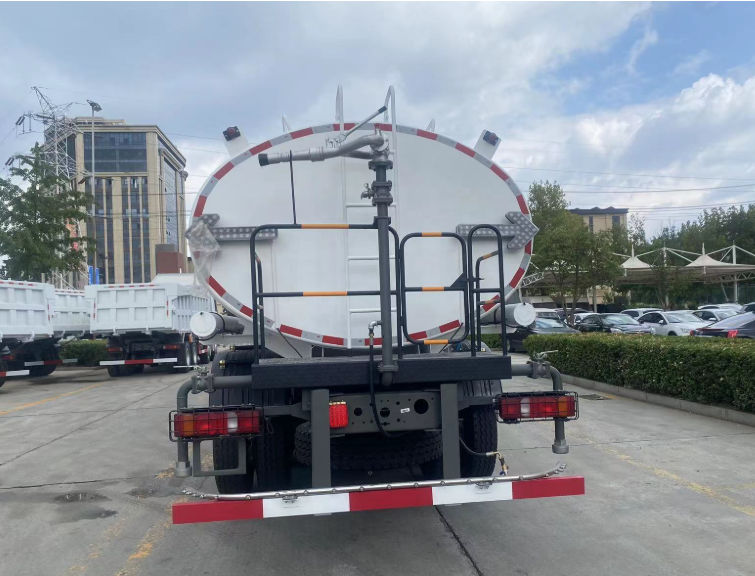

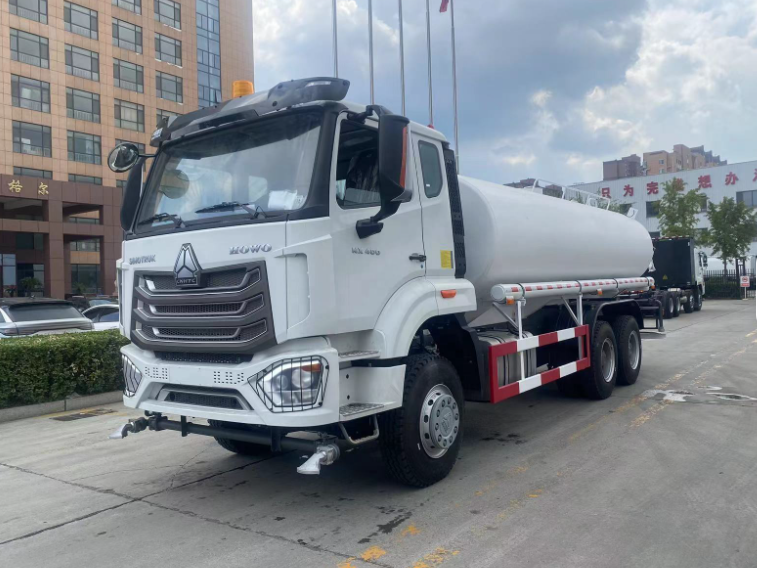

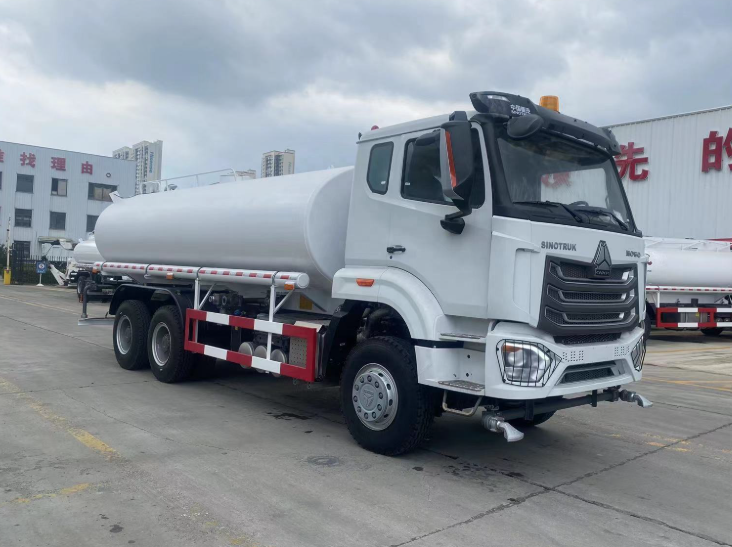

◉ Product Details

  • 4a8ae748-5672-4993-987b-373f9a231791
  • 093fc98b-f700-48b9-8706-60878612f3a2
  • 8b990c24-aea4-4b26-817a-b7603e5032d4
  • 747ee0e4-bd95-4472-b68e-7c3bbbfddb42
  • bc595f1d-502d-439e-b023-21d856eb91d0
  • df8f86ca-1b1e-475f-958c-aae986e54074

◉ Shipping

  • 820f9cfa-ed85-4f6d-b0b8-21fd9a22035a
  • fe67c6cf-6bb8-44e6-97e4-efccf43be49b
  • 1297376.jpg_1200xx.nw
  • 1338314.jpg_1200xx.nw
  • 1297375.jpg_1200xx.nw
  • 6092cc4a-801d-4d97-a25f-881ddac61776
