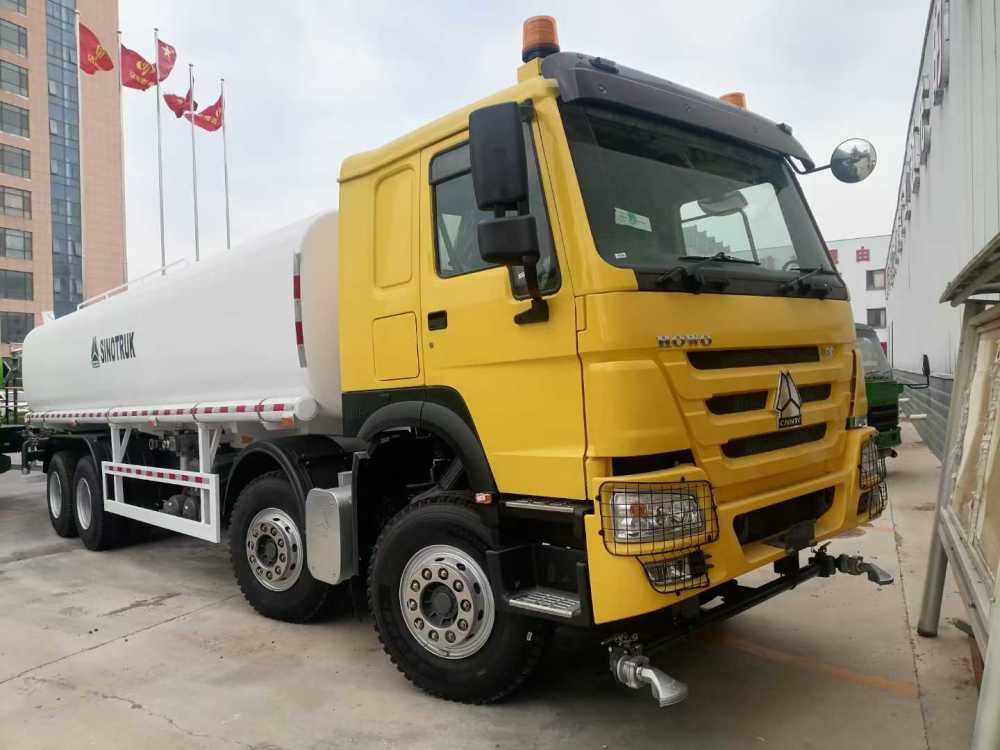

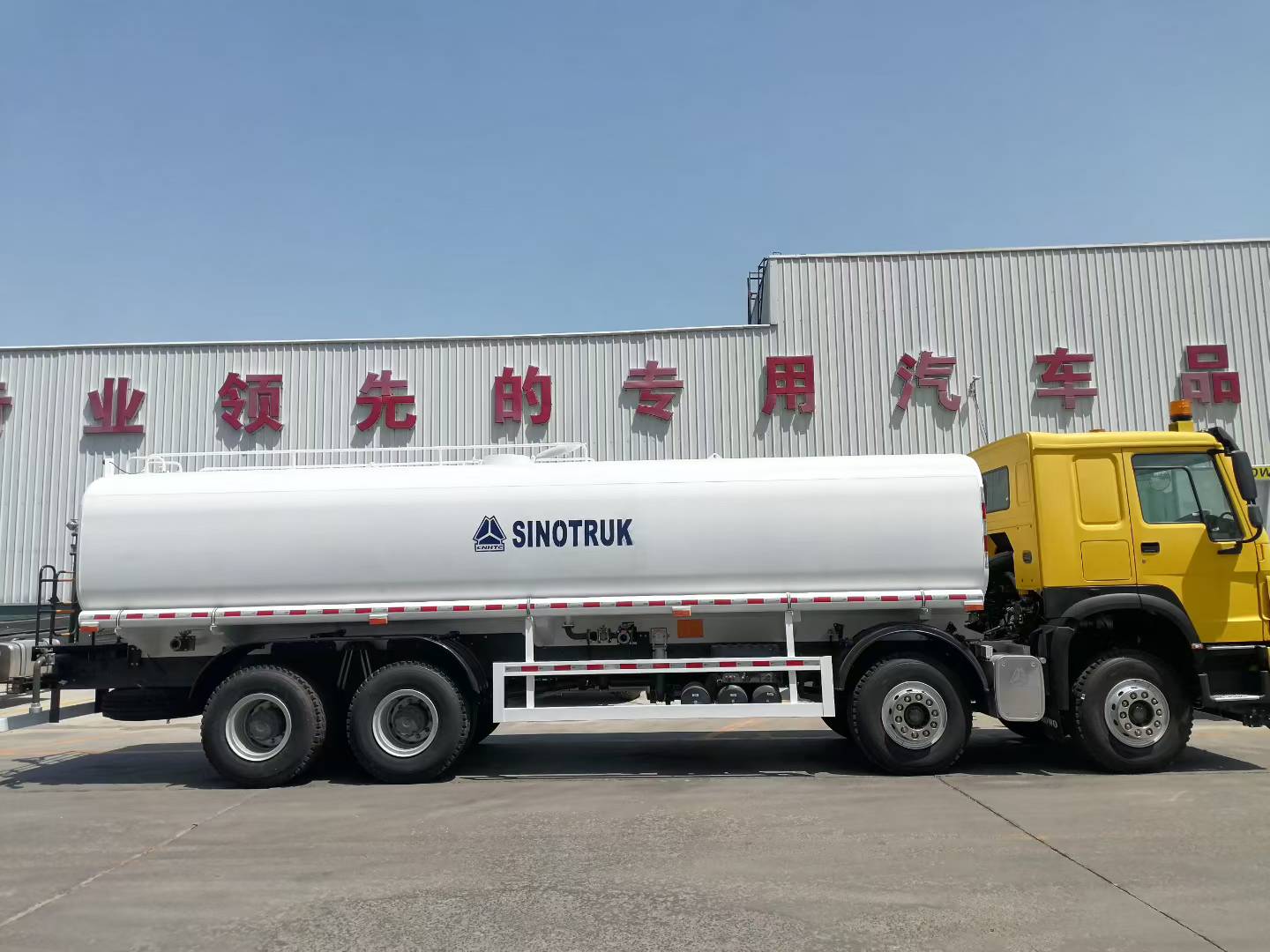

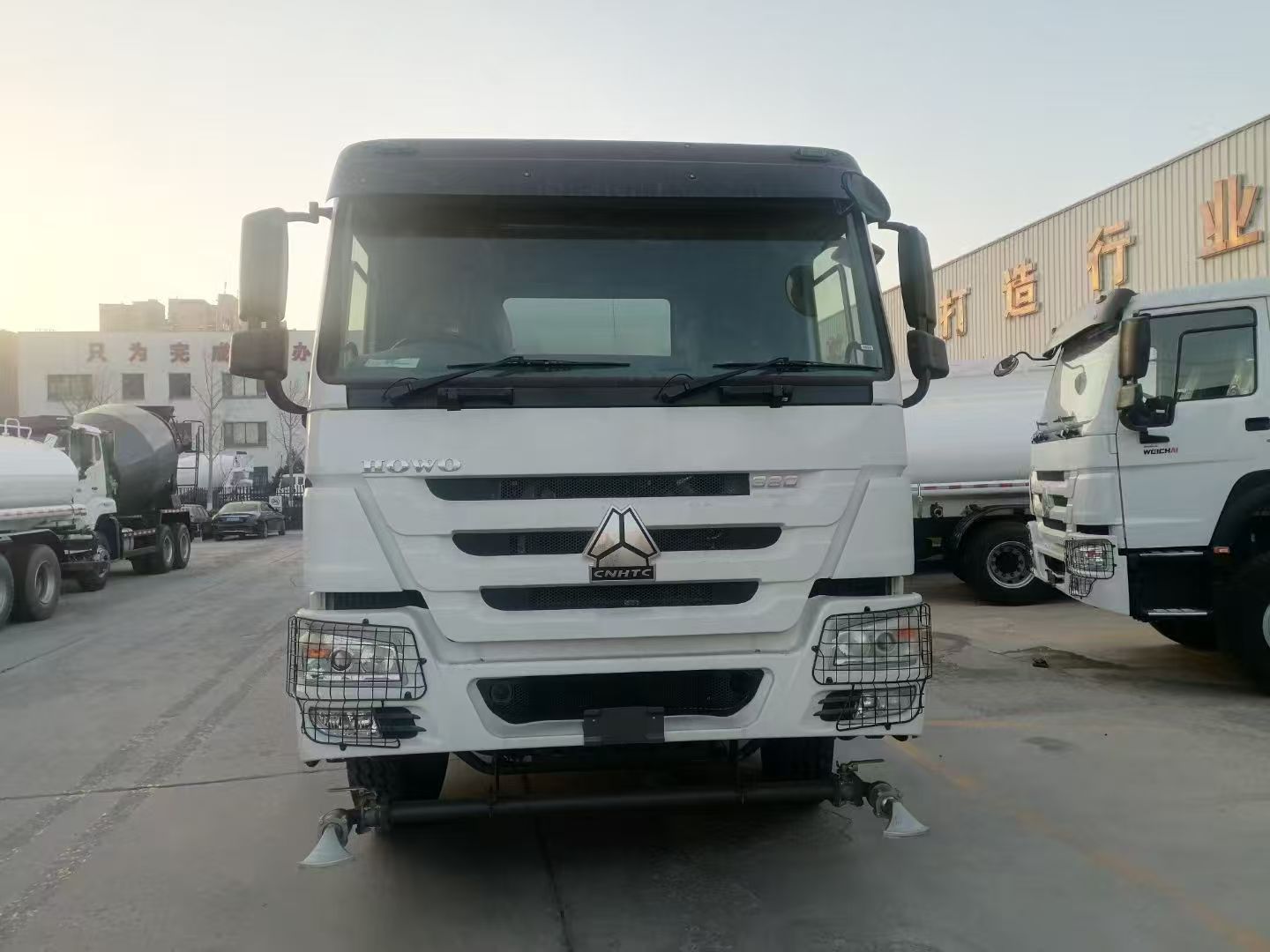

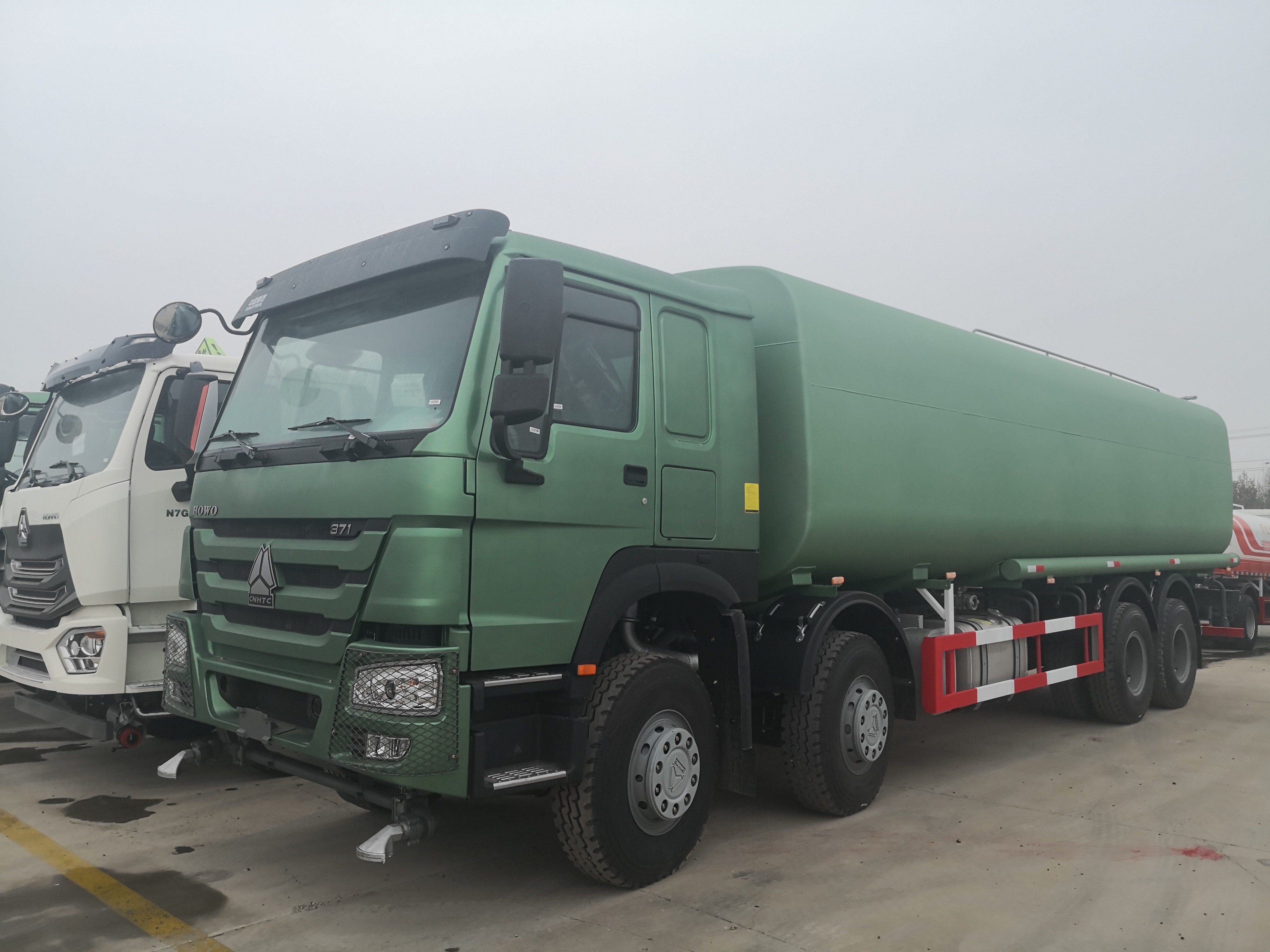

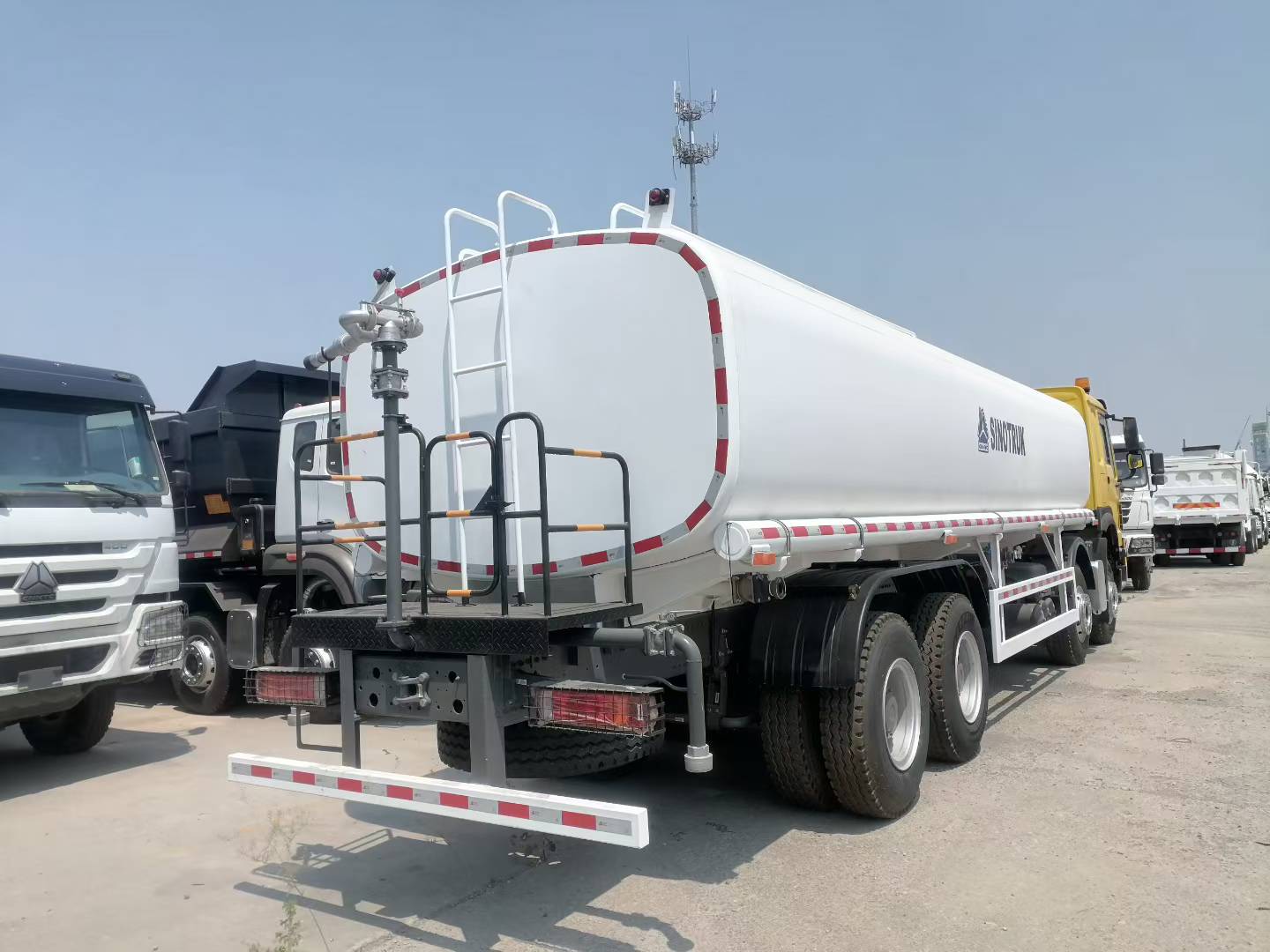

HOWO 7 8×4 Sprinkler truck

Whether it's large-scale dust suppression at mining sites, high-pressure cleaning on major urban highways, or emergency firefighting an irrigation in expansive industrial zones, the HOWO 8×4 water sprinkler truck delivers exceptional performance with power and reliability.
Contact Us

◉ Product Introduction

Whether it's large-scale dust suppression at mining sites, high-pressure cleaning on major urban highways, or emergency firefighting an irrigation in expansive industrial zones, the HOWO 8×4 water sprinkler truck delivers exceptional performance with power and reliability.


30CBM Water Truck


Its high-torque engine—available in a range from 340 to 460 HP—provides strong climbing ability and smooth starting under full load, ensuring stable operation even on challenging terrains and extended routes. The robust 8×4 drive configuration guarantees superior stability, excellent traction, and adaptability to diverse working environments, from rugged construction sites to city thoroughfares.


The water tank is constructed from high-quality carbon steel (Q235) with optimized thickness—5–6mm for shell and heads, and 4mm for anti-surge baffles—to ensure durability and stability during transport. Available in capacities from 25 to 35 cubic meters, the tank features corrosion-resistant interior coating for long service life and reliable performance in demanding conditions.

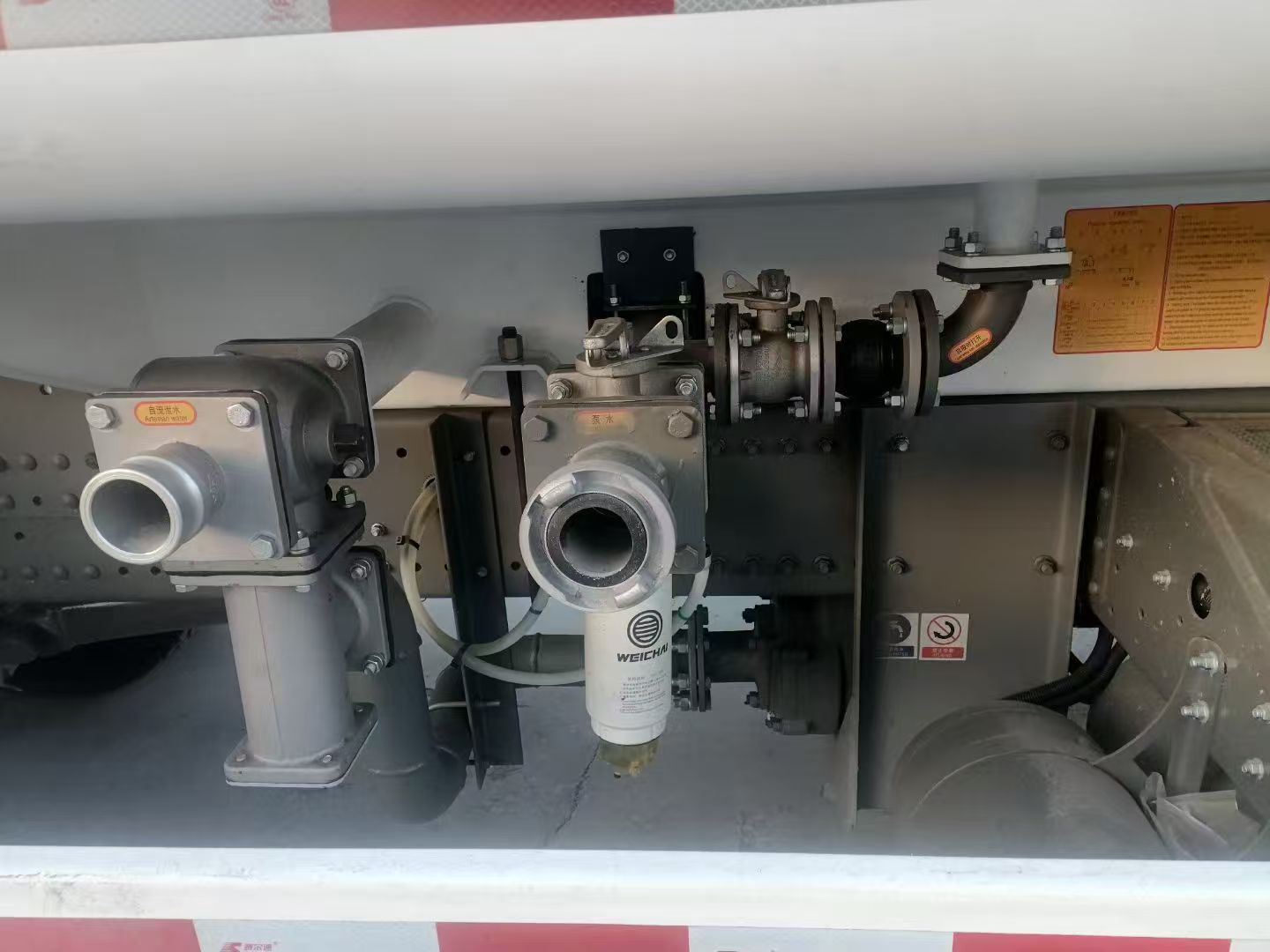

Equipped with a high-performance water pump, the sprinkler supports powerful self-priming and discharge functions. The comprehensive spraying system includes front sprinkling, rear spraying, side spraying, and a high-pressure water providing versatile solutions for dust suppression, road washing,irrigation, and emergency firefighting needs.


The spacious and ergonomically designed cabin offers superior comfort, with optimized seating, advanced vibration reduction, and noise insulation to minimize driver fatigue during long working hours. Large view windows and practical storage spaces further enhance the driving experience and safety.


Choose the HOWO 8×4 water sprinkler truck for a durable, efficient, and high-capacity solution—your trusted partner in large-scale dust control and road maintenance!


Configuration sheet


Model: ZZ1317V4667B1

CHASSIS SPECS

Curb weight

14000KG

Total weight

40,000 kg

Drive style

8×4

Engine:

WD615.47/WD615.69/WP10.340E22/WP12S400E201,336/340/371/400/430HP, EuroII-V

Transmission:

HW19710,10speeds/HW19710,12speeds,with PTO (HW50/HW70)

Cabin:

HW76,single berth,right/left-hand drive,A/C

Color:

Standard (e.g.White, Red)

Wheelbase:

1800+3200+1400mm / 1800+4575+1400mm

Tire:

12.00R20/12.00R24/12R22.5/315/80R22.5,12+1 pcs

Front axle:

VGD95,1×9500KGS capacity

Rear axle:

MCX16ZG/HC16,16T capacity(2×1600KGS), double-reduction, ratio 4.63–5.73

Capacity of oil tank:

400L

Others

/

CARRIAGE BODY SPECS

Size and Specs:

25CBM Water Tanker,Volume: 25 m³

Shell thickness: 4mm

Head thickness: 4mm

Bulkhead thickness: 3mm,

Front sprinkling and rear spraying

Package

Wax
