HOWO TX Crane Truck 8×4

HOWO TX 8*4 Crane Truck – an integrated lifting and transportation solution, offering multiple uses in one vehicle, flexibility, and efficiency, ensuring the safety of your loading, unloading, and transfer operations. The cranes are manufactured by XCMG, featuring lightweight construction, high lifting capacity, and an optimized boom cross-section for high strength and rigidity.
Contact Us

◉ Product Introduction

HOWO TX 8*4 Crane Truck – an integrated lifting and transportation solution, offering multiple uses in one vehicle, flexibility, and efficiency, ensuring the safety of your loading, unloading, and transfer operations. The cranes are manufactured by XCMG, featuring lightweight construction, high lifting capacity, and an optimized boom cross-section for high strength and rigidity.

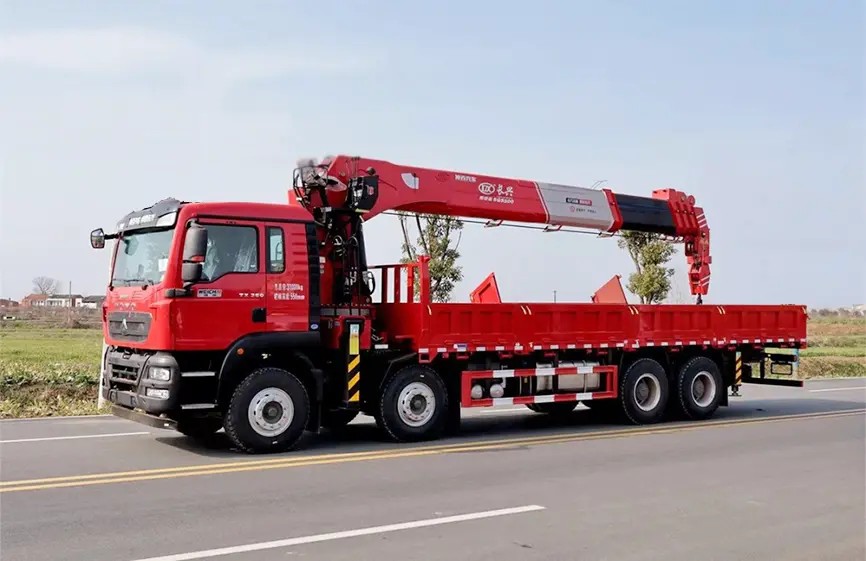

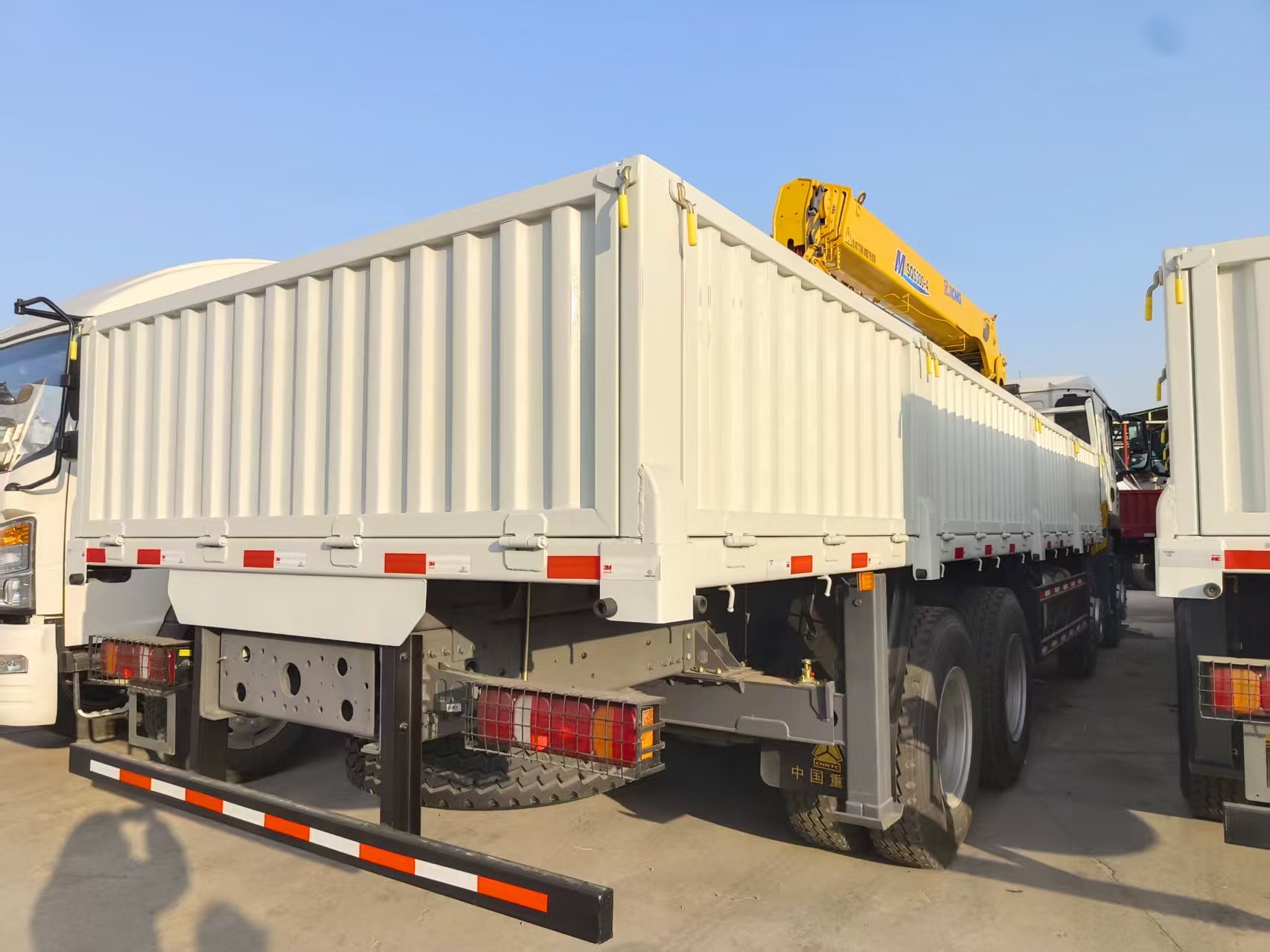

HOWO TX 8×4 Crane Truck (1)


Depending on operational needs, the truck can be equipped with various options to enhance performance and safety:

Front and Rear Outriggers: In addition to the standard center outrigger, front and rear outriggers are optional, increasing operational stability and effectively protecting the tires and frame;

Aerial Work Seat: An optional four-way aerial work seat is available, providing a wider field of vision and safer, more convenient operation;

Functional Auxiliary Equipment: Optional auxiliary equipment such as log grapples, scrap metal grapples, and suspended baskets can be added to expand the scope of operations and achieve multi-purpose functionality.


Configuration sheet


Model:  ZZ1317N466GB1

CHASSIS SPECS

Curb weight

17000kgs

Total weight

31000kgs

Drive style

8×4

Engine:

WD615.47, 371HP, Euro Ⅱ

Transmission:

HW19710, 10F&2R

Cabin:

TX-F, single berth with A/C

Color:

White

Wheelbase:

4600+1350mm

Tire:

12.00R20

Front axle:

VGD95

Rear axle:

MCX16ZG

Capacity of oil tank:

400L

Others

Double Frame(8+8/300),Oil bath filter,Reinforced multi-leaf springs (11/11/12)

CARRIAGE BODY SPECS

Crane:

XCMG cranes, 12-20 tons, straight arm/folding arm, optional aerial work platform seat, front and rear outriggers.

Package

Wax

There are options for engine,tire,wheelbase,capacity,etc.Please contact us for suitable configurations.
