Light Vacuum truck

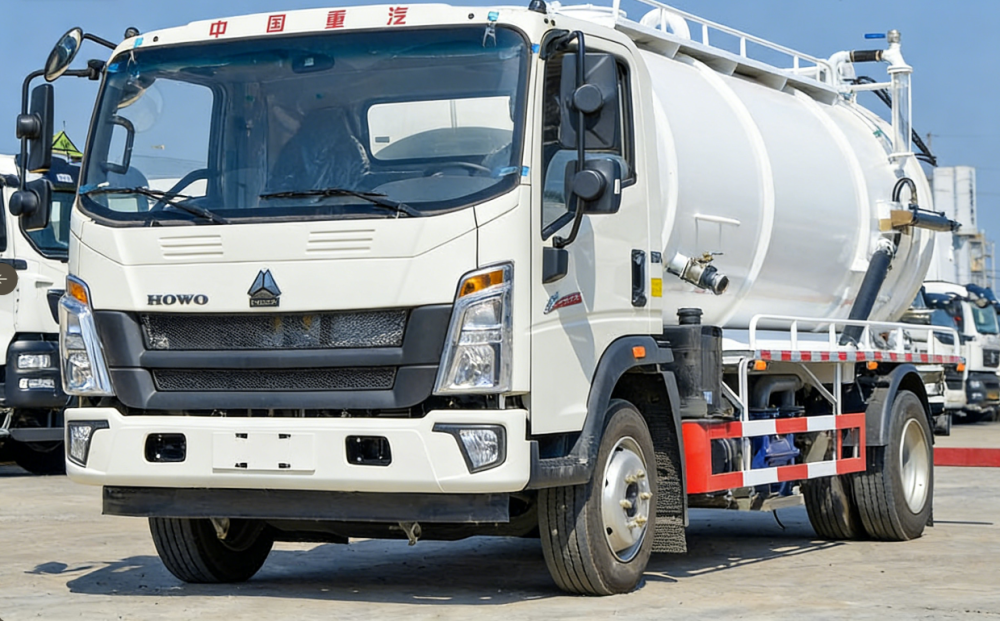

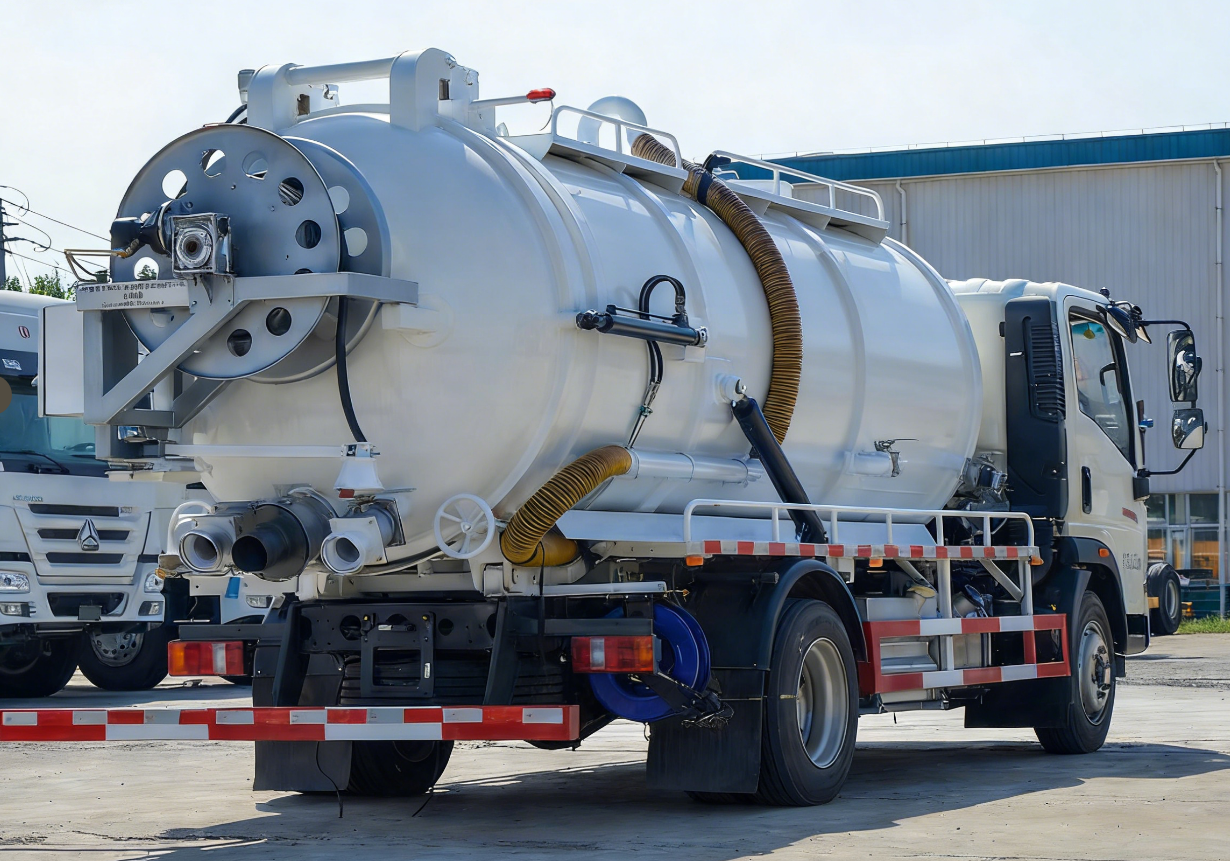

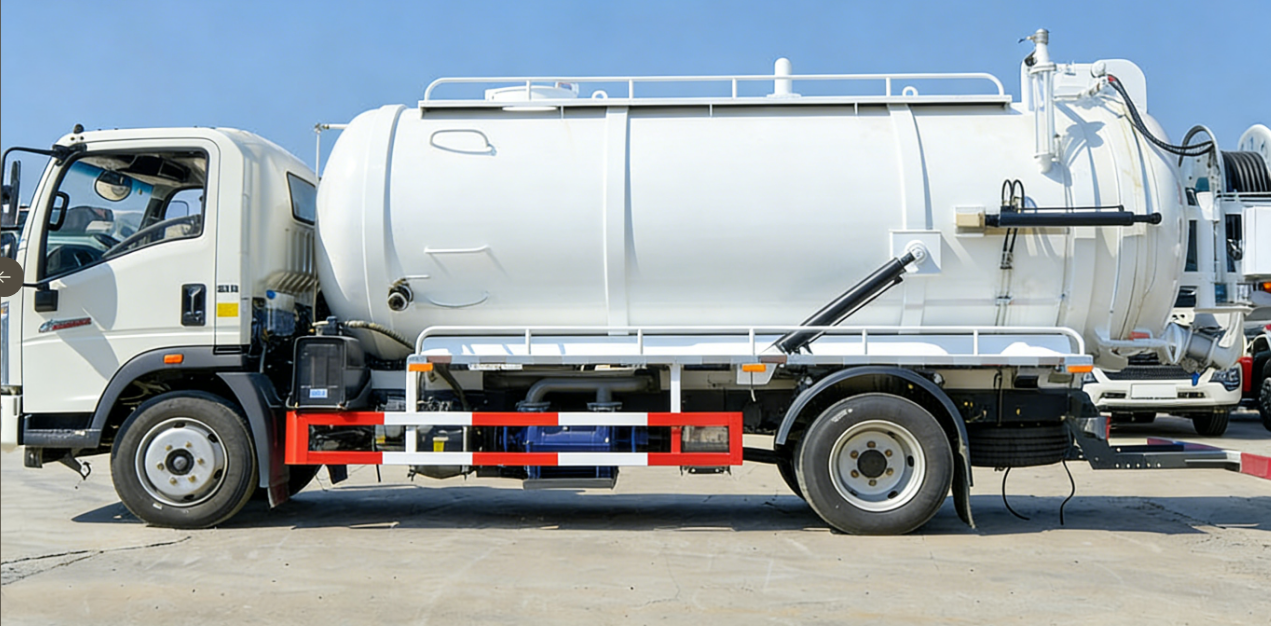

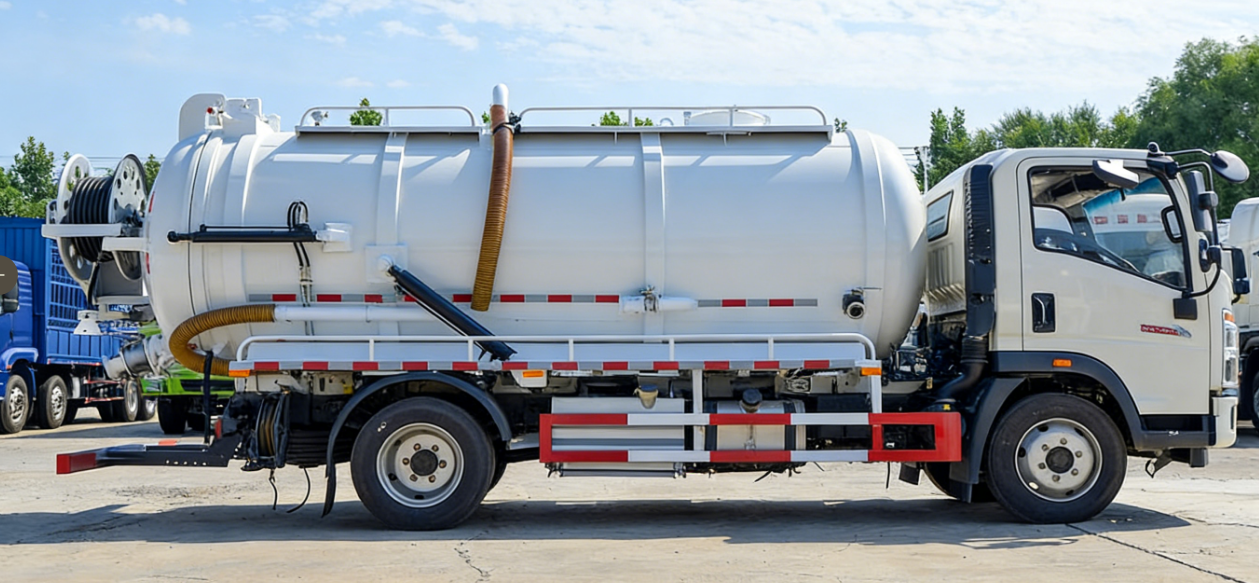

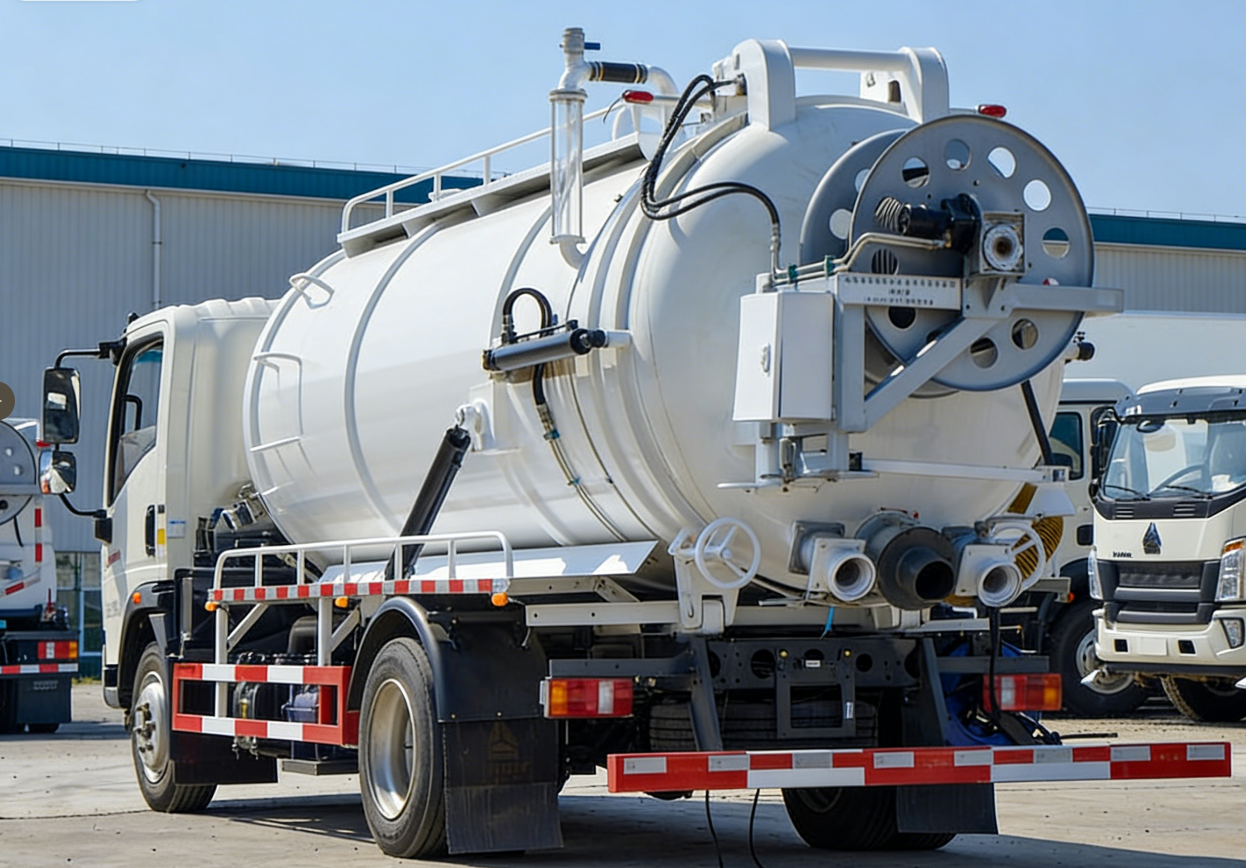

The vacuum cleaning vehicle for light trucks of is built on the chassis of HOWO light trucks. It integrates vacuum suction, sealed transportation, and hydraulic self-unloading functions. It is a dedicated operation vehicle for municipal sanitation, residential property management, construction sites, and livestock farm manure treatment.
Contact Us

◉ Product Introduction

The vacuum cleaning vehicle for light trucks of  is built on the chassis of HOWO light trucks. It integrates vacuum suction, sealed transportation, and hydraulic self-unloading functions. It is a dedicated operation vehicle for municipal sanitation, residential property management, construction sites, and livestock farm manure treatment.

The entire vehicle is equipped with a high-power vacuum pump, with strong suction power and fast suction speed. It can efficiently handle sewage, sludge, mud, septic tank waste, etc. The tank body is made of high-strength carbon steel, and the hydraulic lifting and rear cover can be opened. The sewage discharge is thorough and the residual rate is low.

The chassis has abundant power, reliable load-bearing capacity, and stable operation. It can adapt to urban and rural roads and complex working conditions. The vehicle has a compact structure, flexible operation, and convenient maintenance. It is an ideal equipment for environmental cleaning, pipe network cleaning, and emergency sewage discharge.


Configuration sheet


Model: ZZ1127K4515F1Z

CHASSIS SPECS

Curb weight

4.5T—8.2T

Total weight

7.2T—12T

Transmission:

WLY6T50C (6 forward+1 reverse)

Drive style

Left hand drive

Color:

white

Wheelbase:

3360/3800/4200mm

Tire:

8.25R16 steel cord tread

Front axle:

2.4T-3.6T

Rear axle:

5T-7.2T

Engine:

WP3NQ160E61,160HP,2.97L

CARRIAGE BODY SPECS

Package

Wax

Size and Specs:

4200×1600mm,5.65 m³,Q235B carbon steel (optional 304 stainless steel), tank body thickness 6mm, head thickness.Cylindrical shape + elliptical head, with an internal anti-shock plate design to prevent liquid from shaking during movement.
